What Is Radio Shuttle Racking? Smart Warehouse Technology

1. What is a radio shuttle rack?

Radio Shuttle racking (also known as radio shuttle racking) is a high-density pallet storage system in which a small, self-propelled trolley – called a “shuttle” – runs inside the rack rails to automatically move pallets into or out of the rack without the need for a forklift to enter the rack.

The shuttle receives commands from a remote control or software, quickly and safely placing pallets into storage or bringing them out for forklift pickup. This is considered the perfect bridge between traditional heavy-duty racking and fully automated warehouse systems (ASRS).

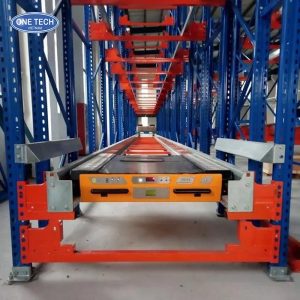

2. Detailed structure of the Radio Shuttle rack system

The Radio Shuttle racking system is not a single unit but a combination of many mechanical and electronic components that work together in close coordination:

• Steel frame system: Made from high-quality cold-rolled steel, powder-coated, and features a special rail design for robots to run on.
• Robot Shuttle: The core device, equipped with a motor, sensors, and rechargeable battery, receives commands from a remote control.
• Remote Control: A device that allows operators to give commands to the robot (receiving goods, shipping goods, rearranging pallets).
• Safety features include: collision avoidance sensors, protective shields, and an emergency braking system.

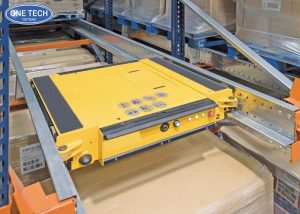

3. Operating principle of the Radio Shuttle rack

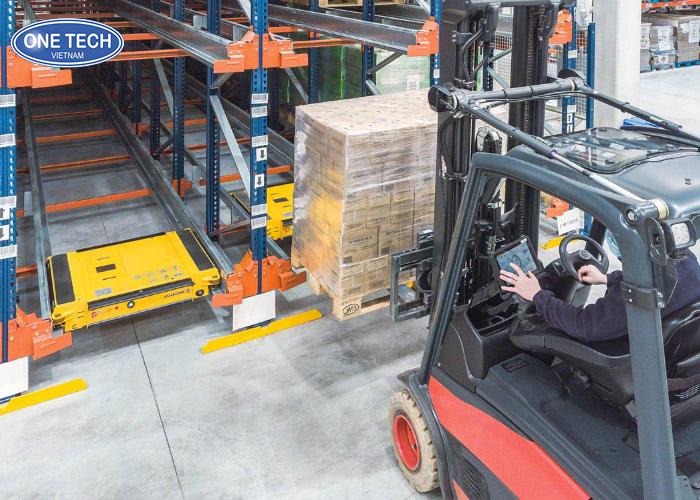

The entire operation of the Radio Shuttle racking system can be visualized as follows: a forklift brings a pallet to the end of the racking lane and places it on the rail. From there, the operator simply presses a button on the handheld controller. The shuttle automatically slides out, goes under the pallet, lifts it up, and moves further into the racking lane until it finds a suitable empty space, then lowers the pallet and returns to its waiting position, and vice versa when loading goods.

4. Comparison of Radio Shuttle racks versus traditional racks

Criteria	Traditional shelves	Radio Shuttle Shelf
Storage density	Low – requires many walkways.	High – maximizing floor space to 80-90%
Operating speed	Completely dependent on forklifts.	Faster thanks to the automated shuttle.
Workplace safety	Forklifts driving too deep into the shelves pose a high risk.	Forklifts should only stand at the front of the lane, which is safer.
Initial investment cost	Lower	Higher (with additional shuttle service)
Suitable for goods	Various SKUs, individual sales	Homogeneous items, large quantities/SKUs
Shelf structure wear and tear	High (forklift crashes into shelf)	Low (forklift cannot access the shelf)
Scalability	Limit	Flexible, add shuttles as needed.

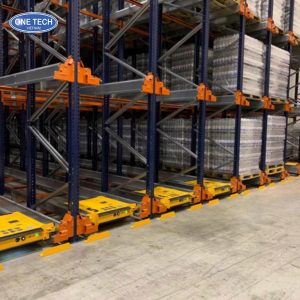

5. Which industries should use Radio Shuttle racking?

Not every warehouse is suitable for a Radio Shuttle — but for the following industries, it’s almost the optimal choice:

Food and beverages are the sector that benefits the most. These goods typically have expiration dates, require strict FIFO (First-In, First-Out) management, and are produced in large quantities with uniform pallet sizes.

Pharmaceuticals and cosmetics require temperature-controlled storage, making cold storage space expensive. Radio Shuttle allows you to fit more products into the same cold storage area – resulting in significant operating cost savings.

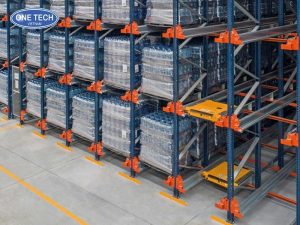

Bottled/canned beverages such as beer, soft drinks, and mineral water are often imported in extremely large quantities, often on the same pallet; this is precisely the area where Radio Shuttle handles things with exceptional efficiency.

Logistics & Distribution : Large-scale distribution centers require high inbound and outbound speeds, and temporary storage of goods in batches. Radio Shuttle significantly increases throughput (processing capacity).

Industrial chemicals: hazardous materials require minimizing worker exposure to the storage area. Radio Shuttle is an ideal solution for limiting personnel working in the risk zone.

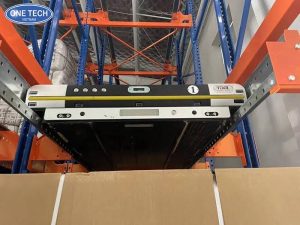

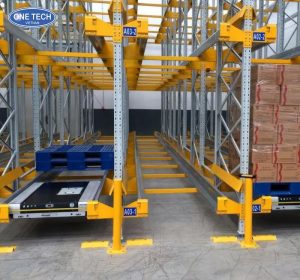

6. Why choose One Tech’s Radio Shuttle System?

While many suppliers offer Radio Shuttle racks on the market today, One Tech stands out for several compelling reasons:

Overall warehouse design consulting

One Tech shelving company not only sells equipment, but also provides support from the site survey and storage needs analysis stages to designing the optimal warehouse layout for each specific business.

The structural quality meets international standards.

The racking system is manufactured from high-quality steel, with an anti-rust surface treatment, and undergoes rigorous load testing before shipment. The shuttle carts incorporate electronic components from reputable brands, ensuring durability and accuracy in long-term operation.

Professional installation and maintenance team

One Tech shelving systems have a well-trained technical team, ensuring installation is on schedule, meets specifications, and provides operational support from the very first day of handover.

After-sales service commitment

With industrial shelving systems lasting for decades, after-sales service is crucial. One Tech shelving provides clear warranties, readily available spare parts, and a quick-response technical team in case of problems.

Multidisciplinary practical experience

From cold storage for food and pharmaceuticals to large-scale distribution centers, One Tech Racking has successfully implemented numerous diverse projects – meaning our team has the experience to handle the specific requirements of each industry.

In the race for warehouse operational efficiency, Radio Shuttle racking is a strategy that optimizes space and manpower. With its superior storage density, enhanced security, and significantly improved loading and unloading speeds, this system has become the “automation standard” for large-scale manufacturing, logistics, and trading businesses.
